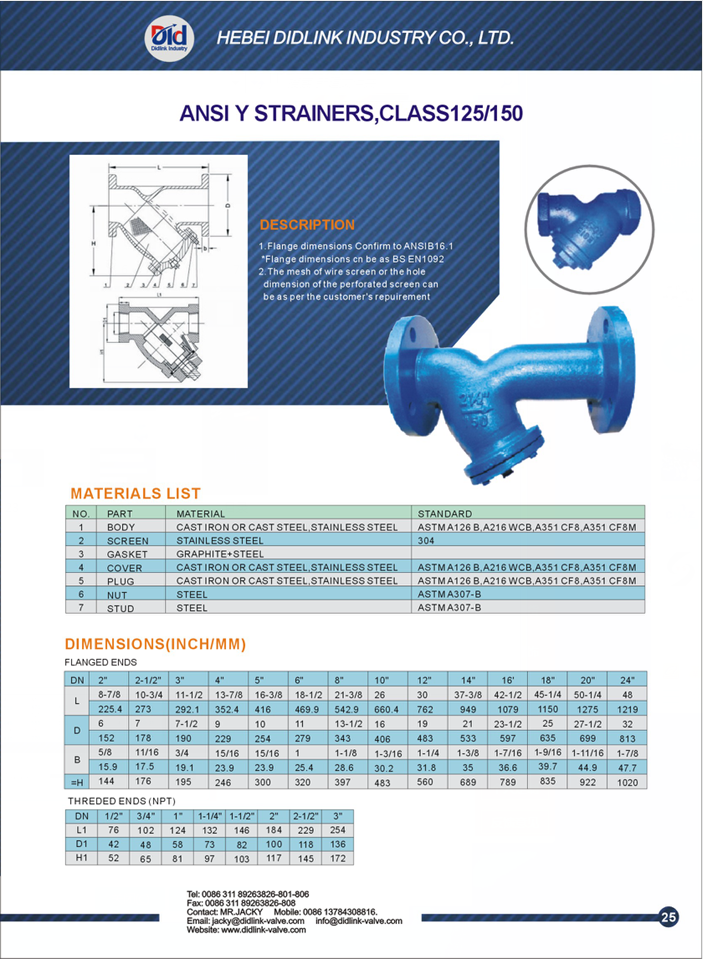

Cast Iron ANSI Standard 200WOG 8 Y Strainer screen ss304, y strainer catalogue


Name:Cast Iron ANSI Standard 200WOG 8 Y Strainer screen ss304, y strainer catalogue
Design confirms:API602,BS5352,ANSI B16.34
Flanges drilled confirms:ANSI B16.5,JB79
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:ANSI B16.11,JB/T1751
Normal pressure:125PSI
Shell test pressure:300PSI
Seal test prressure:200PSI
Suitable medium:water and neutral liquid
Working temperature:≤200℃
BODY:GG25,GGG50,WCB,CF8,CF8M
COVER:GG25,GGG50,WCB,CF8,CF8M
GASKET:GRAPHITE OR RUBBER
SCREEN:304SS
