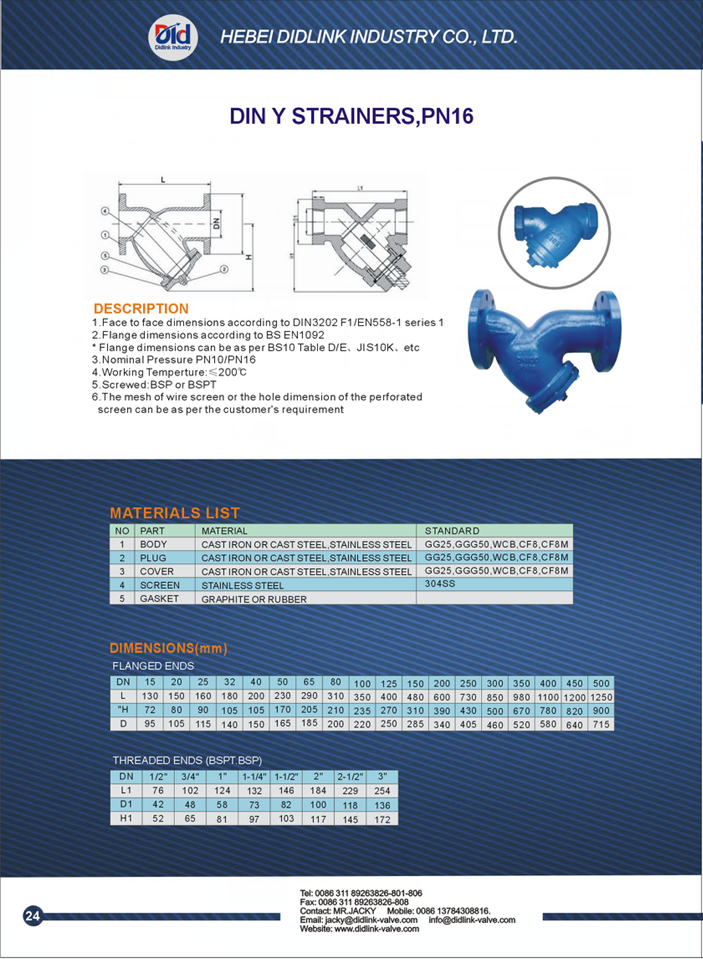

Cast Iron BSP NPT Screwed simplex Y Strainer steam, y strainer gaskets rubber


Name:Cast Iron BSP NPT Screwed simplex Y Strainer steam, y strainer gaskets rubber
Design confirms:API602,BS5352,ANSI B16.34
Flanges drilled confirms:BS EN1092,BS10 Table D/E、JIS10K
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:DIN3202,F6/EN558-1 series 48
Normal pressure:1.6MPa
Shell test pressure:2.4Mpa
Seal test prressure:1.76Mpa
Suitable medium:water and neutral liquid
Working temperature:≤200℃
BODY:GG25,GGG50,WCB,CF8,CF8M
COVER:GG25,GGG50,WCB,CF8,CF8M
GASKET:GRAPHITE OR RUBBER
SCREEN:304SS
