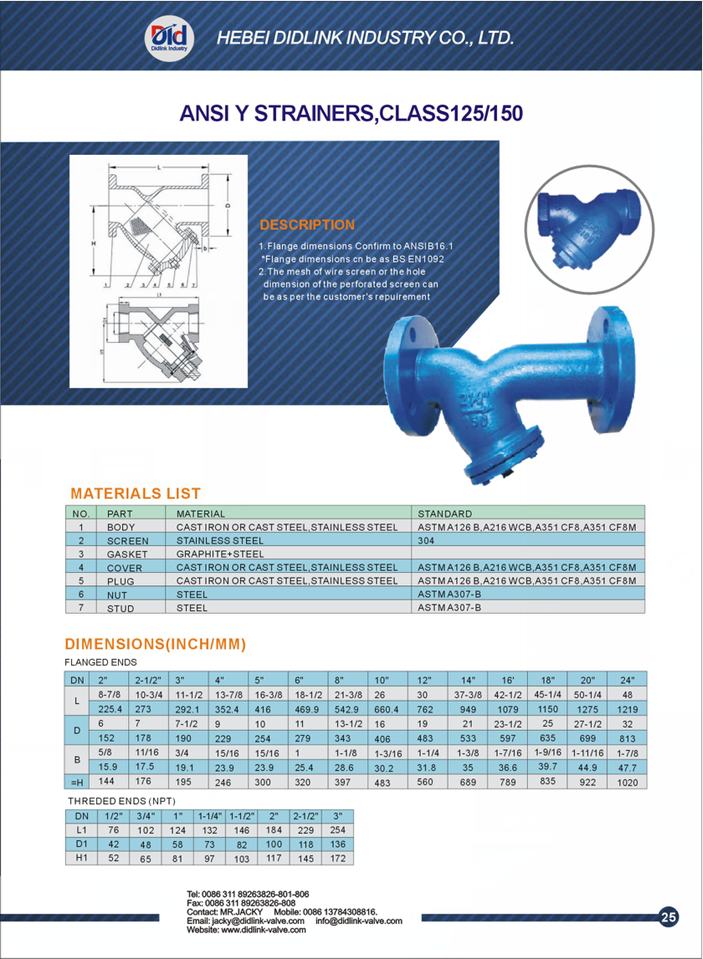

ANSI carbon steel pipe Y Strainer mesh size 1.0mmx1.0mm, armstrong y strainer


Name:ANSI carbon steel pipe Y Strainer mesh size 1.0mmx1.0mm, armstrong y strainer
Design confirms:API602,BS5352,ANSI B16.34
Flanges drilled confirms:ANSI B16.5,JB79
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:ANSI B16.11,JB/T1751
Normal pressure:125PSI
Shell test pressure:300PSI
Seal test prressure:200PSI
Suitable medium:water and neutral liquid
Working temperature:-20 to 425 centigrade
BODY:GG25,GGG50,WCB,CF8,CF8M
COVER:GG25,GGG50,WCB,CF8,CF8M
GASKET:GRAPHITE OR RUBBER
SCREEN:304SS

  • ANSI carbon steel pipe Y Strainer mesh size 1.0mmx1.0mm, armstrong y strainer
