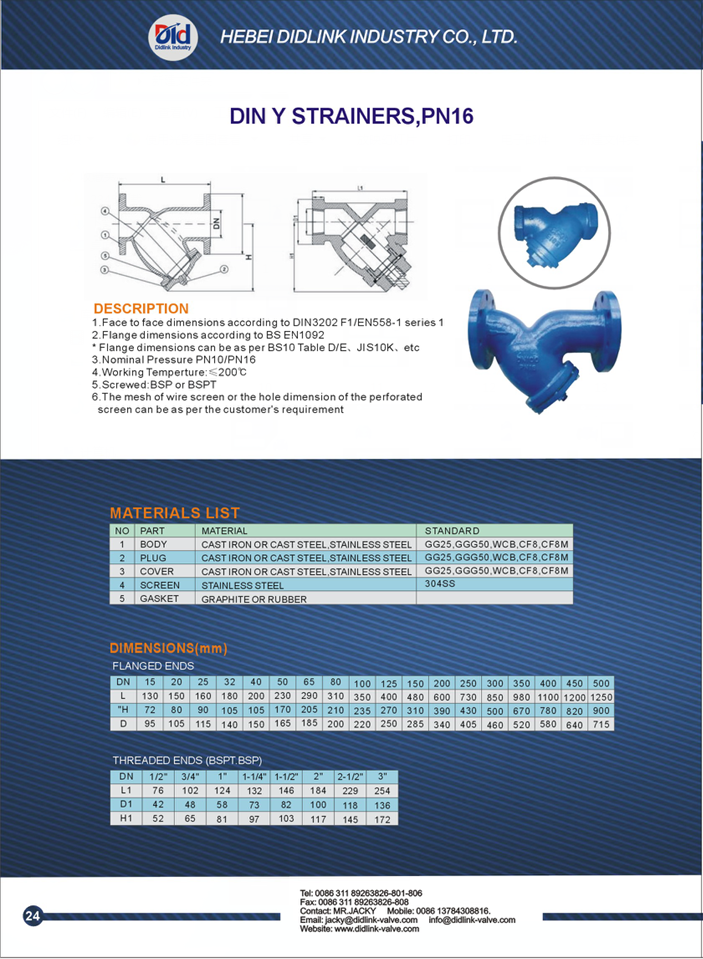

DIN PN16 DN150 stainless y strainer body cf8, strainer fine mesh


Name:DIN PN16 DN150 stainless y strainer body cf8, strainer fine mesh
Design confirms:API602,BS5352,ANSI B16.34
Flanges drilled confirms:BS EN1092,BS10 Table D/E、JIS10K
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:DIN3202,F6/EN558-1 series 48
Normal pressure:1.6MPa
Shell test pressure:2.4Mpa
Seal test prressure:1.76Mpa
Suitable medium:water and neutral liquid
Working temperature:-196 to 650 centigrade
BODY:GG25,GGG50,WCB,CF8,CF8M
COVER:GG25,GGG50,WCB,CF8,CF8M
GASKET:GRAPHITE OR RUBBER
SCREEN:304SS

  • DIN PN16 DN150 stainless y strainer body cf8, strainer fine mesh
