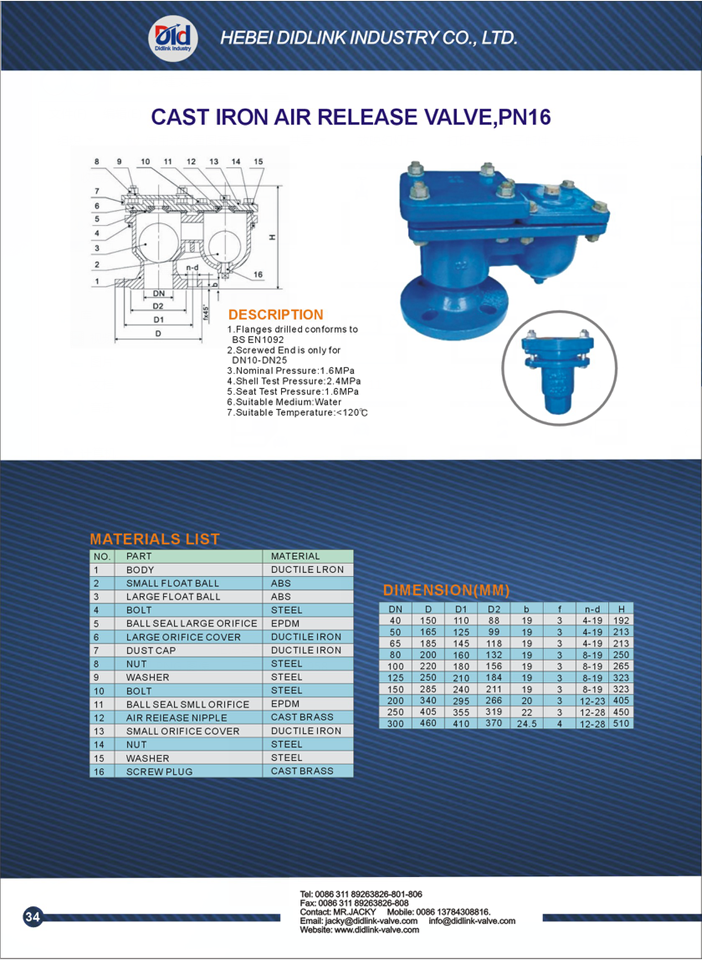

Double Orifice Air Release Valve, air throttle control valve, air proportional valve


Name:Double Orifice Air Release Valve, air throttle control valve, air proportional valve
Design confirms:DIN3352
Flanges drilled confirms:DIN 2501
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:BS6755/DIN3202,F6/EN558-1 series 48
Normal pressure:1.6MPa
Shell test pressure:2.4Mpa
Seal test prressure:1.76Mpa
Suitable medium:Air
Working temperature:NBR≤80°C,EPDM≤120°C
BODY:GG25/GG40/GGG50
DISC:Brass
STEM:Stainless Steel
GLAND FLANGE:NBR/ABS/EPDM
