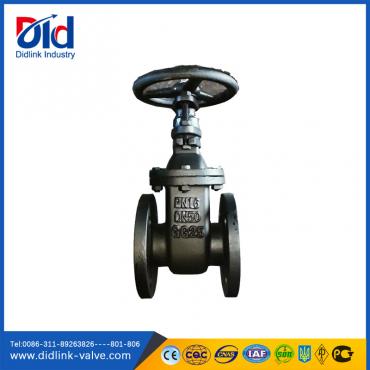

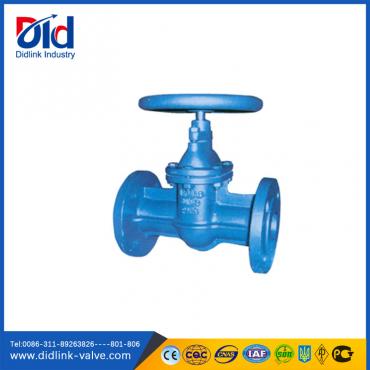

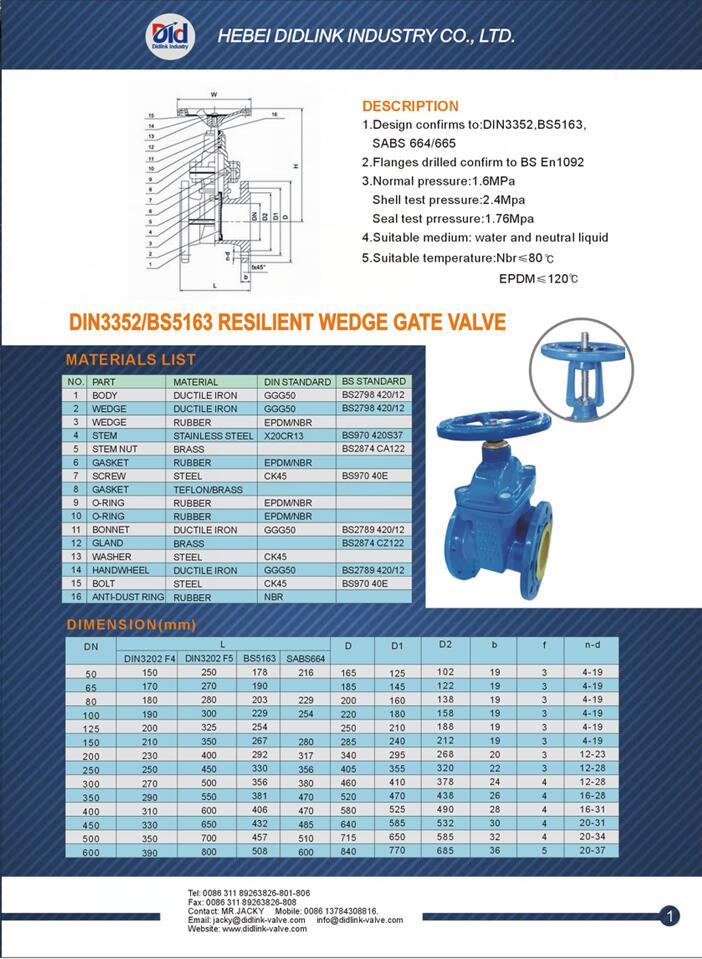

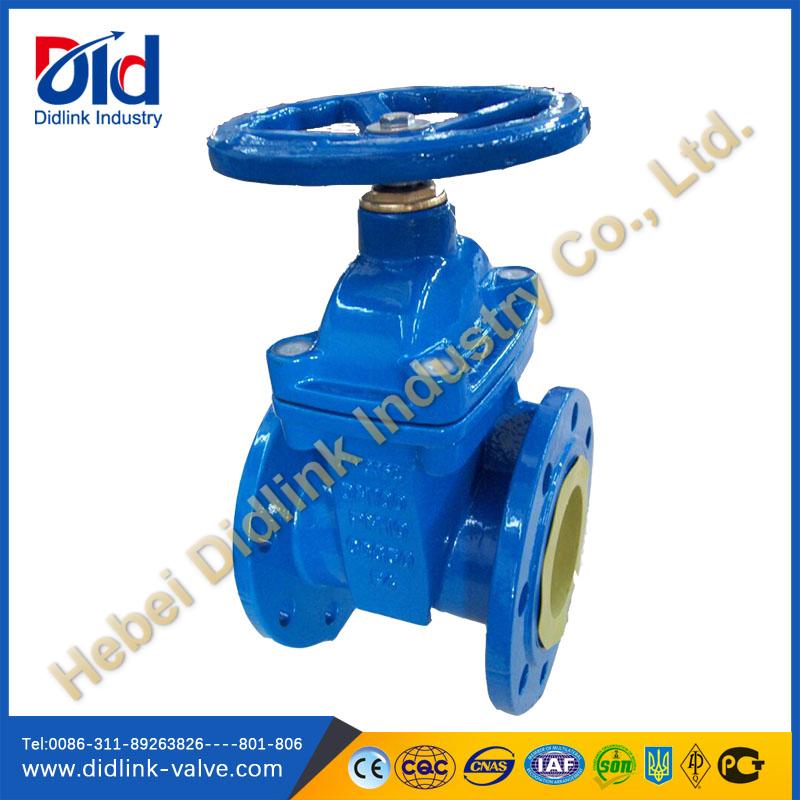

DIN 3352 F4 Resilient Seated Gate Valve
| Name: | DIN 3352 F4 Resilient Seated Gate Valve |
| Design confirms: | DIN3352 |
| Flanges drilled confirms: | DIN2501/EN1092-2 PN10/16/25 |
| Tightness check: | API 598/ISO 5208/EN12226-1 |
| Face-to-face conform: | DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14 |
| Normal pressure: | 1.6MPa |
| Shell test pressure: | 2.4Mpa |
| Seal test prressure: | 1.76Mpa |
| Suitable medium: | water and neutral liquid |
| Working temperature: | -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80) |
| Body/Bonnet/Disc: | Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450 |
| Seat: | EPDM/NBR |
| Stem: | Stainless steel, brass, bronze, steel with zinc |
| Gland follower: | Brass/ductile iron |
Product Description
DIN 3352 F4 Resilient Seated Gate Valve
