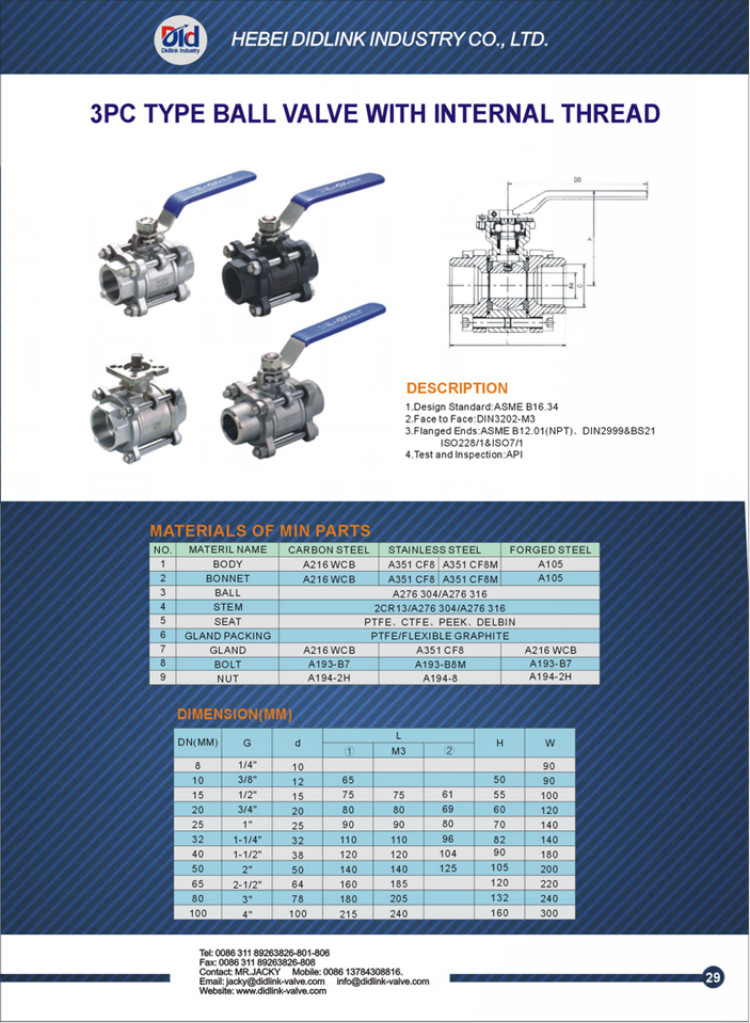

3 pieces stainless steel ball valve 3 4, instrument ball valve
| Name: | 3 pieces stainless steel ball valve 3 4, instrument ball valve |
| Design confirms: | ANSI B16.34 |
| Flanges drilled confirms: | ANSI B16.5 |
| Tightness check: | API 598/ISO 5208/EN12226-1 |
| Face-to-face conform: | ANSI B16.10 |
| Normal pressure: | 1.6Mpa |
| Shell test pressure: | 2.4Mpa |
| Seal test prressure: | 1.76Mpa |
| Suitable medium: | water and neutral liquid |
| Working temperature: | ≤200℃ |
| Body/Bonnet/Disc: | CF8/CF8M/CF3/CF3M Etc. |
| Seat: | PTFE |
| Stem: | F304 F316 F304L F316L |
| Ball: | F304 F316 F304L F316L |
