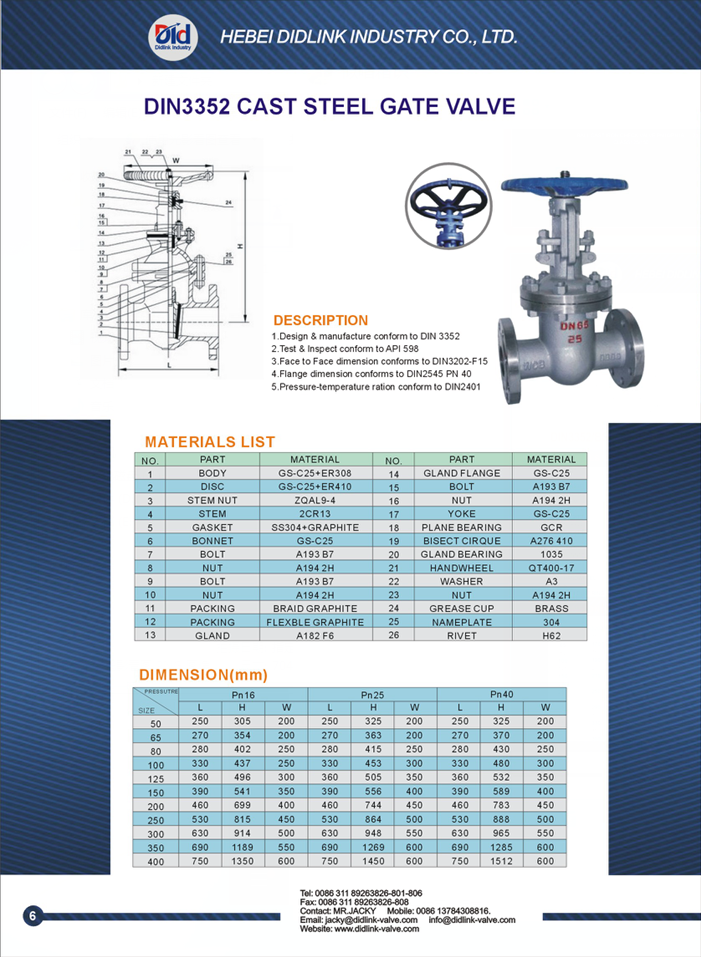

| Name: | Din Stainless Steel Gate Valve Rising stem, double gate valve, gate valve seal 304 |
| Design confirms: | DIN3352 |
| Flanges drilled confirms: | DIN2501/EN1092-2 PN10/16/25 |
| Tightness check: | API 598/ISO 5208/EN12226-1 |
| Face-to-face conform: | DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14 |
| Normal pressure: | 1.6MPa |
| Shell test pressure: | 2.4Mpa |
| Seal test prressure: | 1.76Mpa |
| Suitable medium: | Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc |
| Working temperature: | -196 to 650 centigrade |
| Body/Bonnet/Disc: | CF8,CF8M,CF3,CF3M |
| DISC: | CF8,CF8M,CF3,CF3M |
| Stem: | F304,F316,F304L,F316L |
| GLAND FLANGE: | CF8,CF8M,CF3,CF3M |
|
|
