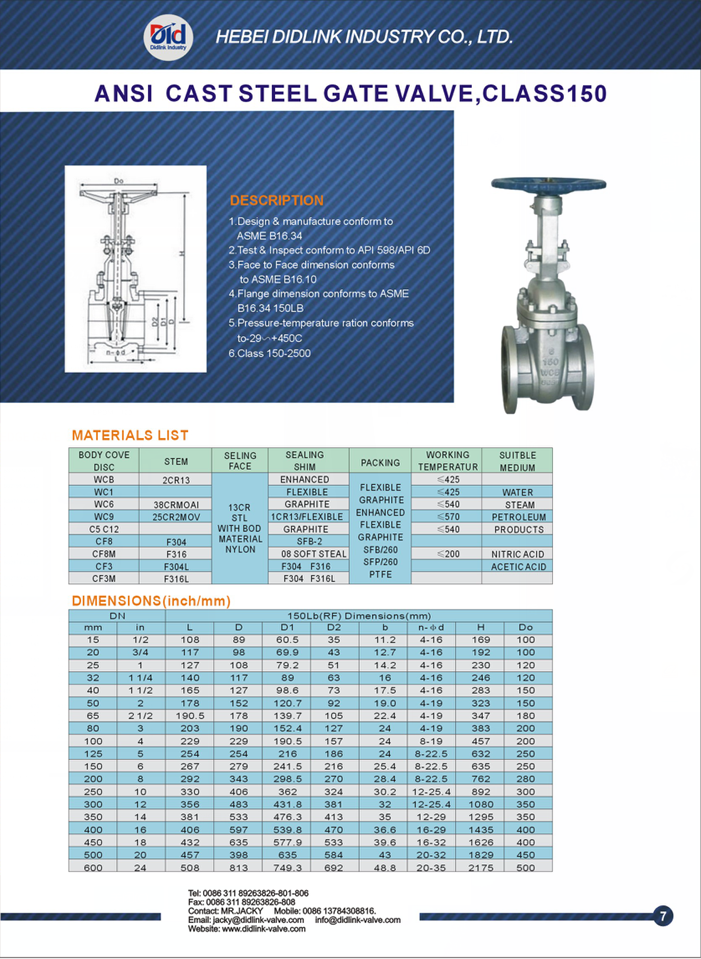

ANSI carbon steel 2 inch gate valve, 3 inch gate valve, 4 inch gate valve
| Name: | ANSI carbon steel 2 inch gate valve, 3 inch gate valve, 4 inch gate valve |
| Design confirms: | ASME B16.34 |
| Flanges drilled confirms: | ASME B16.34 150LB |
| Tightness check: | API 598/API 6D |
| Face-to-face conform: | ASME B16.10 |
| Normal pressure: | 150LB |
| Shell test pressure: | 3.0Mpa |
| Seal test prressure: | 2.2Mpa |
| Suitable medium: | water, oil, air and some corrosive liquid. |
| Working temperature: | -20 to 425 centigrade |
| Body/Bonnet/Disc: | A216 WCB |
| DISC: | A216 WCB |
| Stem: | 2CR13 |
| GLAND FLANGE: | A216 WCB |
