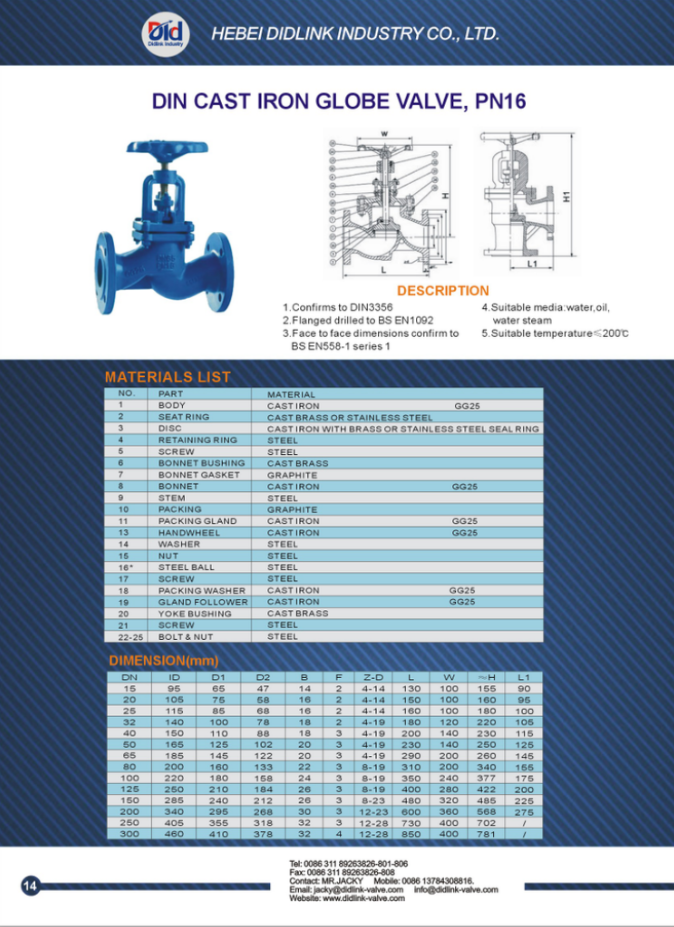

| Name: | DIN flange type ci globe valve body gg25, globe valve diagram |
| Design confirms: | DIN3356 |
| Flanges drilled confirms: | BS EN1092 |
| Tightness check: | EN12266 |
| Face-to-face conform: | BS EN558-1 series 1 |
| Normal pressure: | 1.6MPa |
| Shell test pressure: | 2.4Mpa |
| Seal test prressure: | 1.76Mpa |
| Suitable medium: | water and neutral liquid |
| Working temperature: | 0 to 200 centigrade. |
| Body/Bonnet/Disc: | Cast iron GG25 |
| DISC: | Cast iron with Brass or stainless steel seal ring |
| Stem: | Zinc Plated Steel/ Stainless Steel/ 2Cr13 stainless steel etc. |
| GLAND FLANGE: | Cast iron GG25 |
|
|
