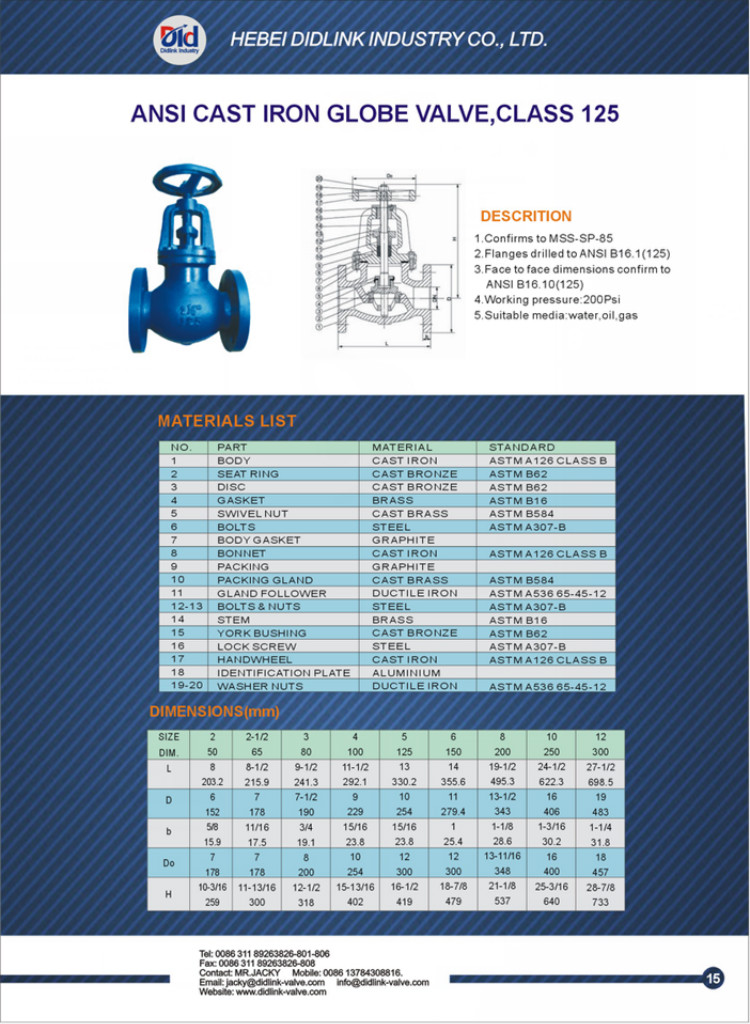

ANSI cast iron bronze trim control globe valve applications, valve globe

Name:ANSI cast iron bronze trim control globe valve applications, valve globe
Design confirms:MSS-SP-85
Flanges drilled confirms:ANSI B16.1(125)
Tightness check:API 598/API 6D
Face-to-face conform:ANSI B16.10(125)
Normal pressure:125PSI
Shell test pressure:350PSI
Seal test prressure:200PSI
Suitable medium:water and neutral liquid
Working temperature:0 to 120 centigrade.
Body/Bonnet/Disc:Cast iron GG25
DISC:Cast iron with Brass or stainless steel seal ring
Stem:Zinc Plated Steel/ Stainless Steel/ 2Cr13 stainless steel etc.
GLAND FLANGE:Cast iron GG25

  • ANSI cast iron bronze trim control globe valve applications, valve globe

Product Description

ANSI cast iron bronze trim control globe valve applications, valve globe
