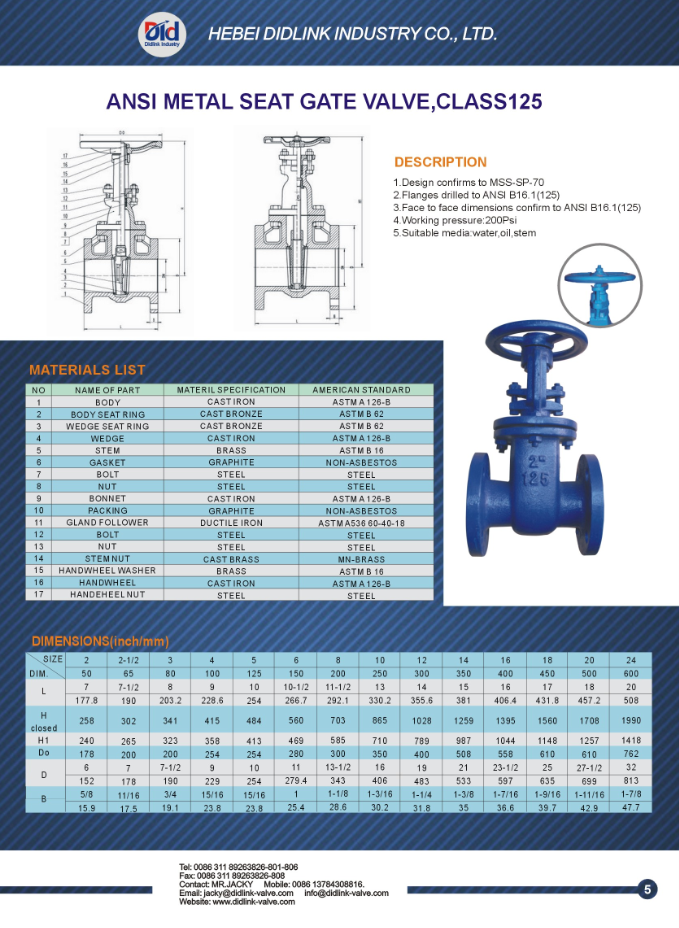

ANSI Rising Stem Metal Sealed 6 Gate Valve China


Name:ANSI Rising Stem Metal Sealed 6 Gate Valve China
Design confirms:MSS-SP-70
Flanges drilled confirms:ANSI B16.1(125)
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:ANSI B16.1(125)
Normal pressure:125PSI
Shell test pressure:350PSI
Seal test prressure:200PSI
Suitable medium:water and neutral liquid
Working temperature:0 to 120 centigrade.
Body/Bonnet/Disc:ASTM A 126-B
Seat:ASTM A 126-B+ASTM B 62
Stem:ASTM B 16
Gland follower:ASTM A536 60-40-18
