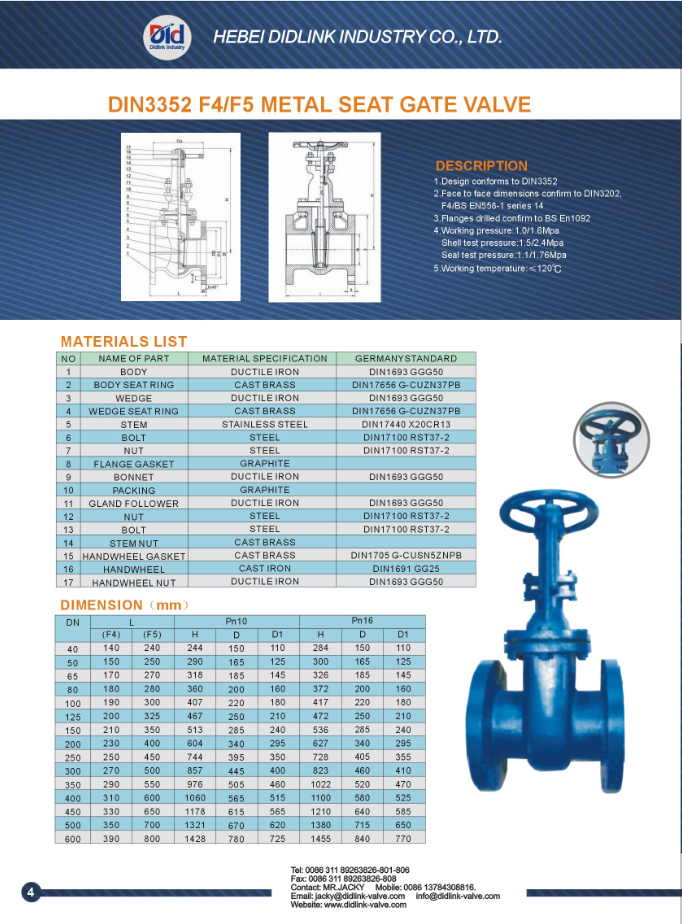

Din3352 F4 Brass Sealing Plumbing Gate Valve packing, lever gate valve


Name:Din3352 F4 Brass Sealing Plumbing Gate Valve packing, lever gate valve
Design confirms:DIN3352
Flanges drilled confirms:DIN2501/EN1092-2 PN10/16
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14
Normal pressure:1.0MPa/1.6MPa
Shell test pressure:1.5MPa/2.4MPa
Seal test prressure:1.1MPa/1.76MPa
Suitable medium:water and neutral liquid
Working temperature:0 to 120 centigrade.
Body/Bonnet/Disc:GG25
Seat:GG25/Brass
Stem:DIN17440 X20CR13
Gland follower:GG25
