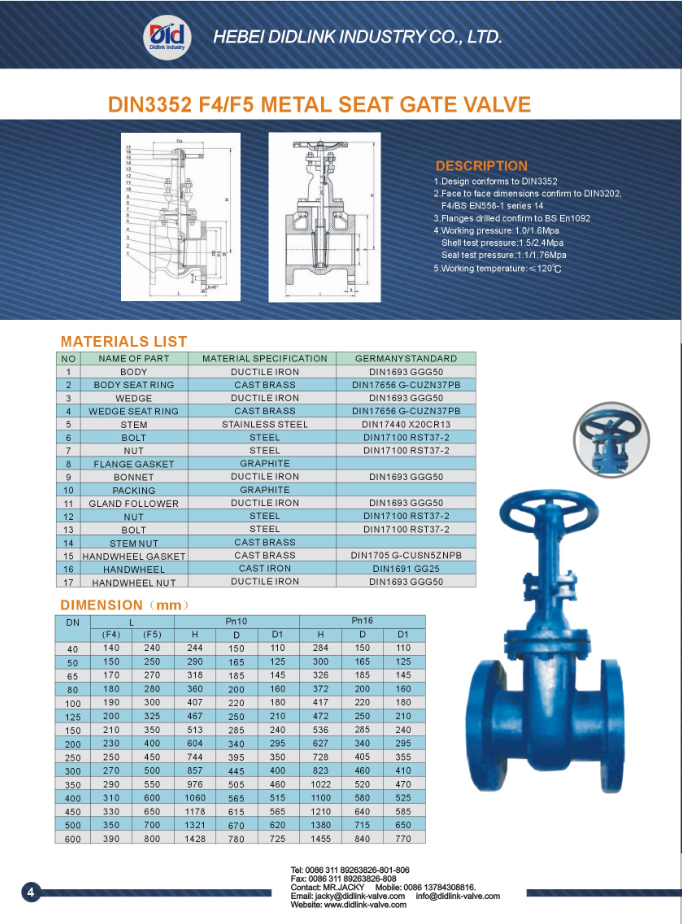

Ductile Iron DIN F5 Metal Seal Avk Gate Valve PN16
| Name: | Ductile Iron DIN F5 Metal Seal Avk Gate Valve PN16 |
| Design confirms: | DIN3352 |
| Flanges drilled confirms: | DIN2501/EN1092-2 PN10/16 |
| Tightness check: | API 598/ISO 5208/EN12226-1 |
| Face-to-face conform: | DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14 |
| Normal pressure: | 1.6MPa |
| Shell test pressure: | 2.4MPa |
| Seal test prressure: | 1.76MPa |
| Suitable medium: | water and neutral liquid |
| Working temperature: | 0 to 120 centigrade. |
| Body/Bonnet/Disc: | DIN1693 GGG50 |
| Seat: | DIN1693 GGG50+DIN17656 G-CUZN37PB |
| Stem: | DIN17440 X20CR13 |
| Gland follower: | DIN1693 GGG50 |
