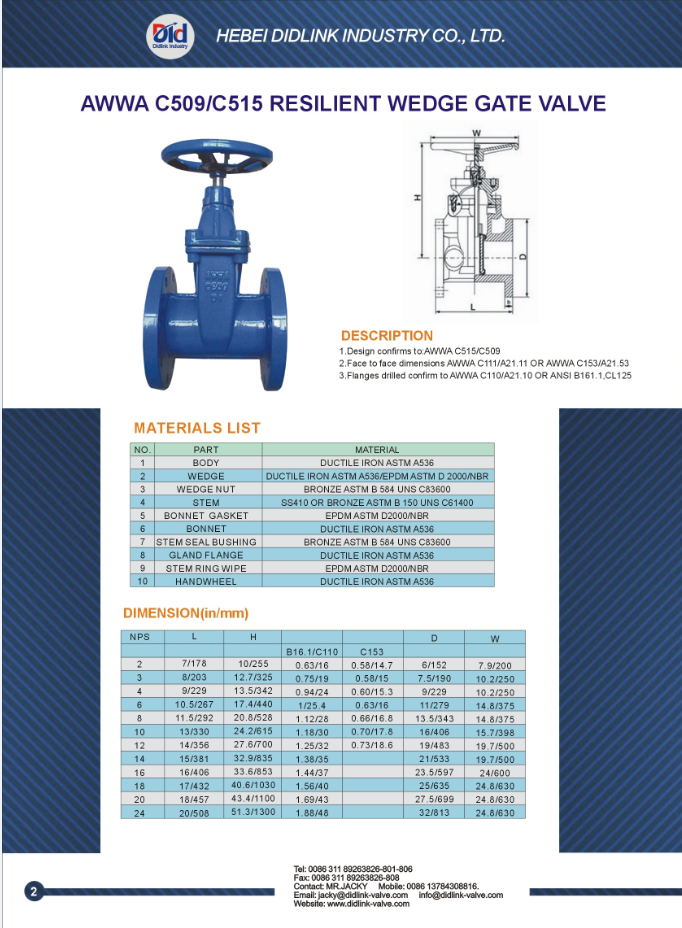

| Name: | AWWA 2 inch gate valve With flange, kennedy gate valve |
| Design confirms: | AWWA C515/C509 |
| Flanges drilled confirms: | AWWA C110/A21.10 OR ANSI B161.1,CL125 |
| Tightness check: | API 598/ISO 5208/EN12226-1 |
| Face-to-face conform: | AWWA C111/A21.11 OR AWWA C153/A21.53 |
| Normal pressure: | 125 PSI |
| Shell test pressure: | 350 PSI |
| Seal test prressure: | 200 PSI |
| Suitable medium: | water and neutral liquid |
| Working temperature: | -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80) |
| Body/Bonnet/Disc: | DUCTILE IRON ASTM A536 |
| Seat: | EPDM/NBRDUCTILE IRON ASTM A536/EPDM ASTM D 2000/NBR |
| Stem: | SS410 OR BRONZE ASTM B 150 UNS C61400 |
| Gland follower: | Brass/ductile iron |
|
|
