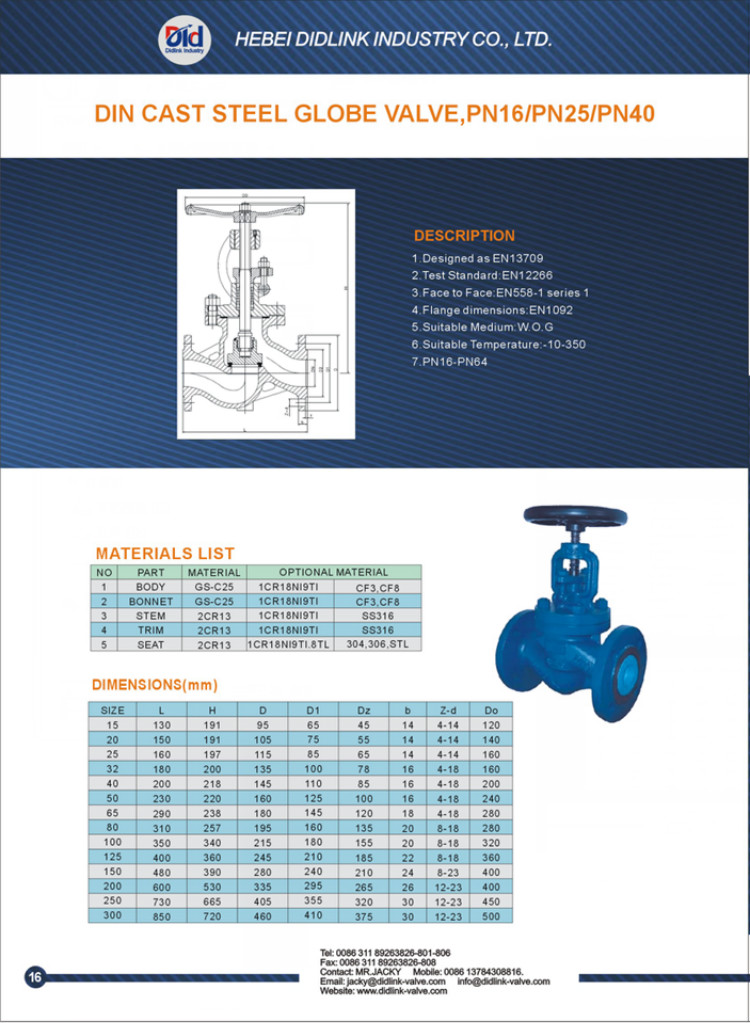

| Name: | DIN PN16 DN80 CF8 sanitary globe valve specification, globe valve drawing |
| Design confirms: | DIN3356 |
| Flanges drilled confirms: | BS EN1092 |
| Tightness check: | EN12266 |
| Face-to-face conform: | BS EN558-1 series 1 |
| Normal pressure: | 1.6MPa |
| Shell test pressure: | 2.4Mpa |
| Seal test prressure: | 1.76Mpa |
| Suitable medium: | water, oil, air and some corrosive liquid. |
| Working temperature: | -196 to 650 centigrade |
| Body/Bonnet/Disc: | CF8/CF8M/CF3/CF3M Etc. |
| DISC: | CF8/CF8M/CF3/CF3M Etc. |
| Stem: | F304 F316 F304L F316L |
| GLAND FLANGE: | F304 F316 F304L F316L |
|
|
