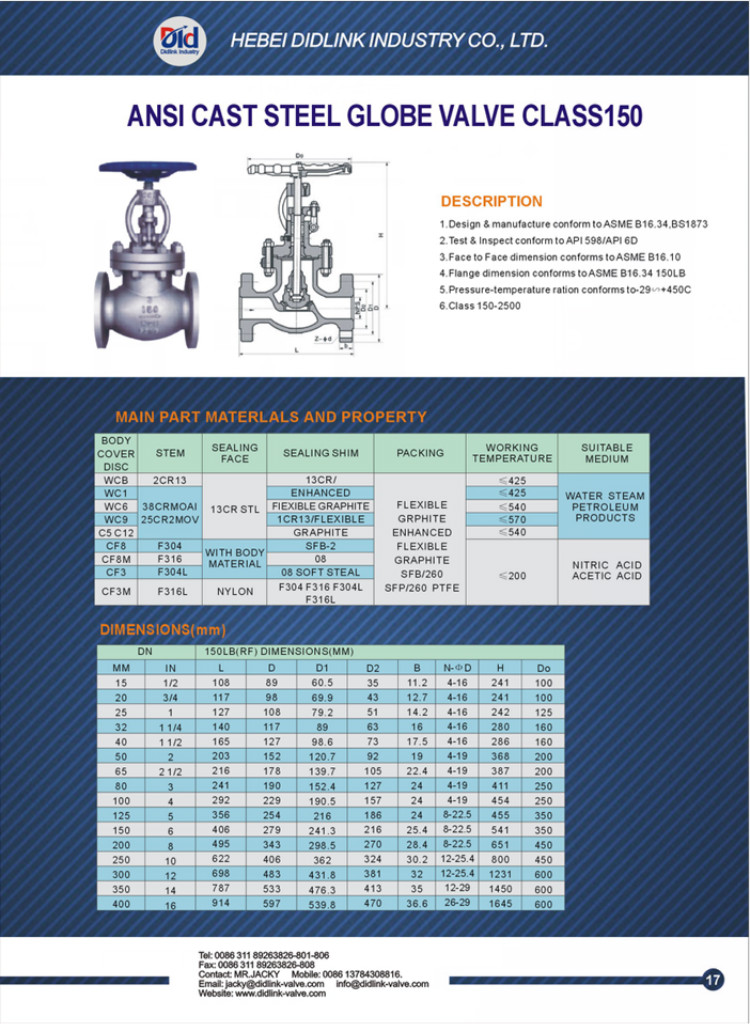

| Name: | ANSI CL150 4 inch globe valve steam, globe valve catalogue |
| Design confirms: | ASME B16.34,BS1873 |
| Flanges drilled confirms: | ASME B16.34 300LB |
| Tightness check: | API 598/API 6D |
| Face-to-face conform: | ASME B16.10 |
| Normal pressure: | 150LB |
| Shell test pressure: | 3.0Mpa |
| Seal test prressure: | 2.2Mpa |
| Suitable medium: | water, oil, air and some corrosive liquid. |
| Working temperature: | -196 to 650 centigrade |
| Body/Bonnet/Disc: | CF8/CF8M/CF3/CF3M Etc. |
| DISC: | CF8/CF8M/CF3/CF3M Etc. |
| Stem: | F304 F316 F304L F316L |
| GLAND FLANGE: | F304 F316 F304L F316L |
|
|
