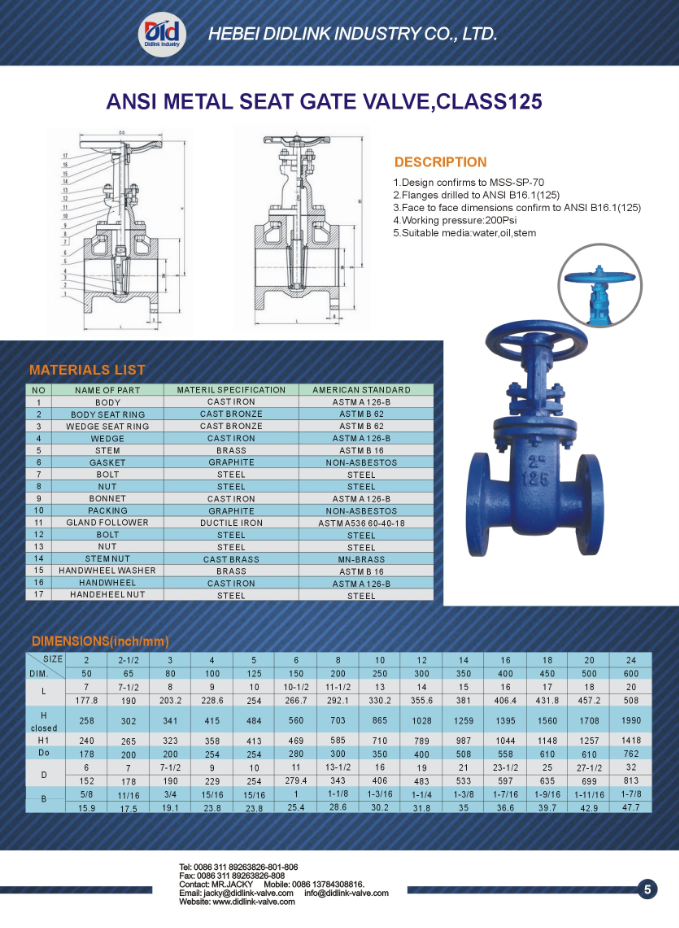

ANSI Non-Rising Stem Metal Sealed 5 Gate Valve wiki
| Name: | ANSI Non-Rising Stem Metal Sealed 5 Gate Valve wiki |
| Design confirms: | MSS-SP-70 |
| Flanges drilled confirms: | ANSI B16.1(125) |
| Tightness check: | API 598/ISO 5208/EN12226-1 |
| Face-to-face conform: | ANSI B16.1(125) |
| Normal pressure: | 125PSI |
| Shell test pressure: | 350PSI |
| Seal test prressure: | 200PSI |
| Suitable medium: | water and neutral liquid |
| Working temperature: | 0 to 120 centigrade. |
| Body/Bonnet/Disc: | ASTM A 126-B |
| Seat: | ASTM A 126-B+ASTM B 62 |
| Stem: | ASTM B 16 |
| Gland follower: | ASTM A536 60-40-18 |
