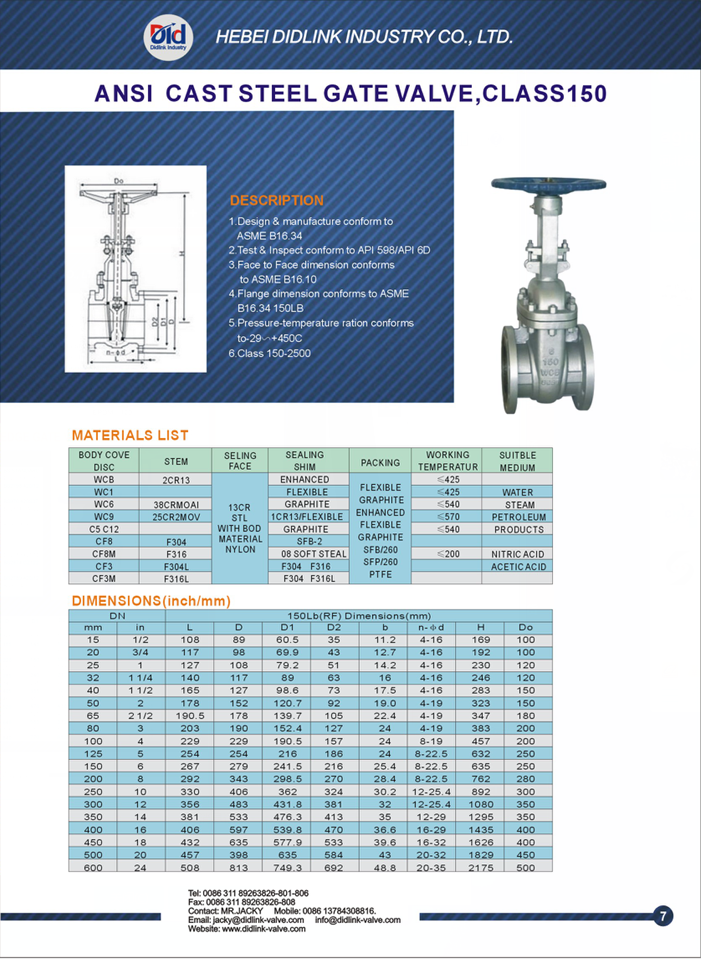

API 6D 150LB SS Gate Valve 4 Inch, gate valve dimensions
| Name: | API 6D 150LB SS Gate Valve 4 Inch, gate valve dimensions |
| Design confirms: | API 6D & API 600 |
| Flanges drilled confirms: | ASME B16.5 & MSS-SP-44 |
| Tightness check: | API 598/ISO 5208/EN12226-1 |
| Face-to-face conform: | API 6D & ASME B16.10 |
| Normal pressure: | 150LB |
| Shell test pressure: | 3.0Mpa |
| Seal test prressure: | 2.2Mpa |
| Suitable medium: | Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc |
| Working temperature: | -196 to 650 centigrade |
| Body/Bonnet/Disc: | CF8,CF8M,CF3,CF3M |
| DISC: | CF8,CF8M,CF3,CF3M |
| Stem: | F304,F316,F304L,F316L |
| GLAND FLANGE: | CF8,CF8M,CF3,CF3M |
